The brand new Drawmer 1972 two-channel mic and instrument preamp takes up only one rack house. Nonetheless, it comes with loads of connectivity choices and many cool options that present versatility for studio, broadcast and reside audio purposes. Let’s have a look at what Drawmer 1972 has to supply.
In a single rack house Dromer 1972 provides two similar analog channels. One have a look at the entrance panel leaves little question that this factor can do far more than simply enhance the quantity of your microphones.
First, let us take a look at the inputs, that are many. Along with 1/4″ inlet for entrance panel instrument stage indicators, every channel provides XLR microphone enter and 1/4”-XLR combo enter for line stage sources behind. Six place rotary switches present a variety of enter choices. Along with instrument and line, the switches supply at least 4 mic positions for activation. phantom energy and selecting between three completely different impedances (200, 600 and 2400 ohms). That is particularly helpful for impedance-matched passive ribbon mics, Drowmer says.
achieve knobs are modified in 6 dB steps to precisely recall the earlier settings. Drawmer 1972 delivers as much as 66 dB achieve. Every channel additionally has a 4-segment LED enter stage meter, in addition to an output stage management (±12dB) and a backlit quantity meter.
Plenty of helpful additional options
However that is not all, as a result of 1972 provides some helpful extra options. Along with the section reverse button, every channel provides high and low cross filters with a slope of 12 dB. Whereas the low frequencies vary from 15 Hz to 350 Hz, the excessive frequencies cowl the vary from 1.5 to twenty kHz. This lets you rapidly work with undesirable frequencies.
Now it will get actually fascinating: Raise up button prompts ascending expander and amplifies indicators under -30 dB till they attain 0 dB. Drawmer calls Raise “the proper, clean computerized achieve management instrument” and claims it helps fight poor microphone practices in studio, TV audio, and audio conferencing purposes.
And final however not least: The shape function is an “prompt sound fixer” that makes use of two separate slope equalizers centered at 500 Hz. Low Form boosts 40Hz by 2.5dB and cuts 10kHz by -2.5dB. Hello Form does simply the alternative. When each are concerned, this ends in a “bucket” at 500 Hz, which helps take care of harsh-sounding mixes, says Drowmer.
All in all, the brand new Drawmer 1972 seems like a real workhorse with sufficient versatility to sort out any recording problem.
Worth and availability
Drawmer 1972 is now accessible for order for £795 plus VAT (UK MRP).
Extra about Drawmer 1972
* This put up comprises affiliate hyperlinks and/or widgets. Whenever you buy a product via our affiliate associate, we earn a small fee to assist assist what we do. Don’t fret, you pay the identical value. Thanks for assist!

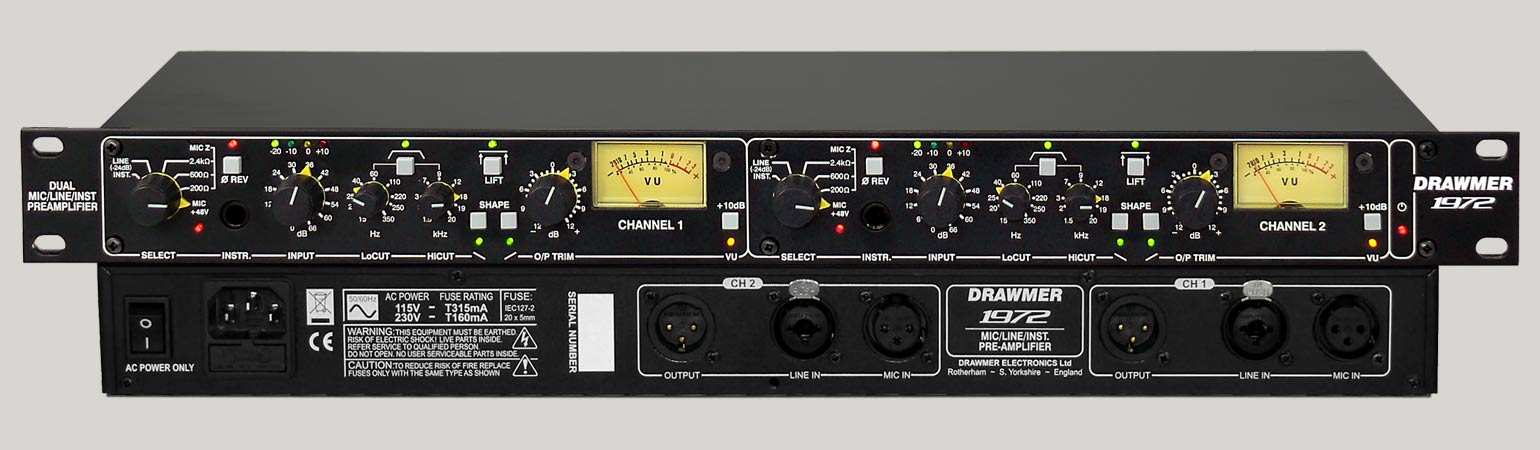

- Back and front panels: drawer

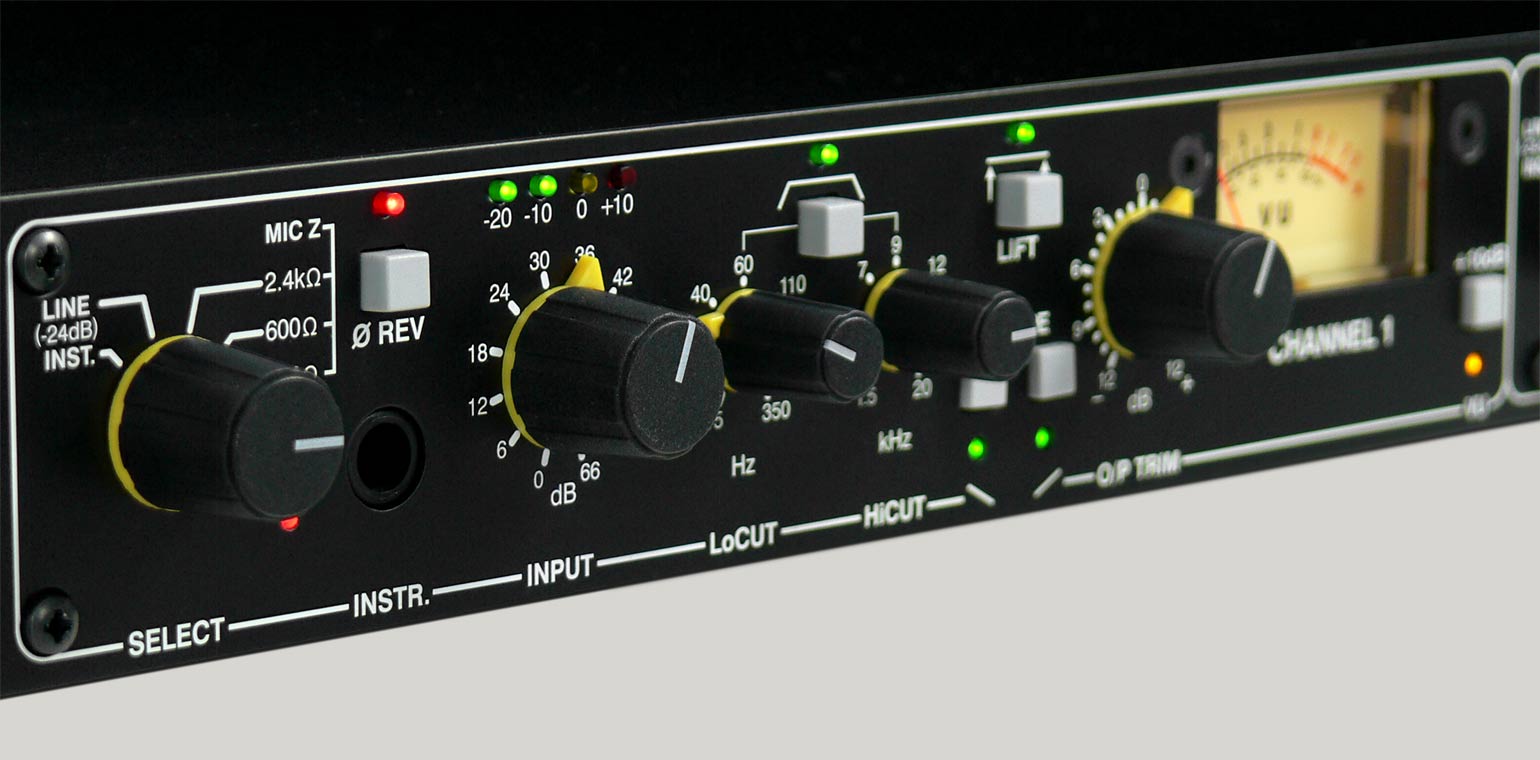

- Enter channel: drawer
